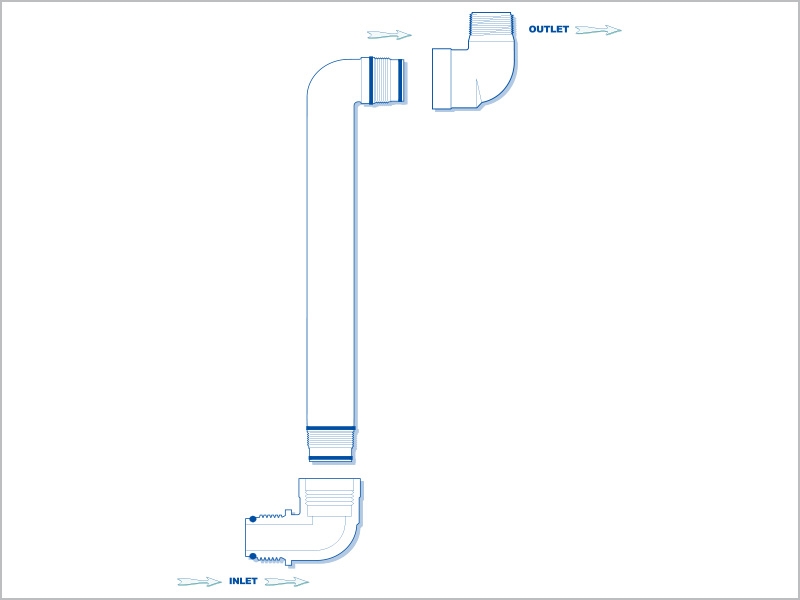

Acme Base Standard Unibody
You can find Ordering Instructions at the bottom of this page.
Part Number Generator
First select "Size", then choose other options with the selection menus or by clicking icons below.
Inlets
Acme Inlets
(A1) 1" Acme x 1" FS
(A3) 1" Acme x 1 1/2" FS
(A4) 1" Acme x 1 1/4" FS
(A5) 1 1/4" Acme x 1 1/4" FS
(A6) 1 1/2" Acme x 1 1/4" FS
(A9) 1 1/2" Acme x 1 1/2" FS
Outlets
IPS Standard
Iron Pipe Size Standard
(1) FS x Socket 1" or 1 1/4" or 1 1/2"
(2) FS x Fipt 1" or 1 1/4" or 1 1/2"
(3) FS x Mipt 1" or 1 1/4" or 1 1/2"
(4) 1" FS x 1 1/4" Mipt
(5) 1" FS x 1 1/2" Mipt
(6) 1 1/4" FS x 1 1/2" Mipt
(7) 1 1/4" FS x 1" Mipt
(8) 1 1/2" FS x 1" Mipt
(9) 1 1/2" FS x 1 1/4" Mipt
Acme Outlets
(13) 1" FS x 1" Acme
(14) 1" FS x 1 1/4" Acme
(15) 1" FS x 1 1/2" Acme
(16) 1 1/4" FS x 1" Acme
(17) 1 1/4" FS x 1 1/4" Acme
(18) 1 1/4" FS x 1 1/2" Acme
(20) 1 1/2" FS x 1 1/4" Acme
(21) 1 1/2" FS x 1 1/2" Acme
BSPT
British Standard Pipe (Tapered Thread)
(22) FS x BSPT 1" or 1 1/4" or 1 1/2"
(23) 1" FS x 1 1/4" BSPT
(24) 1" FS x 1 1/2" BSPT
(25) 1 1/4" FS x 1 1/2" BSPT
(26) 1 1/4" FS x 1" BSPT
(27) 1 1/2" FS x 1 1/4" BSPT
Lay Length
Lay Length
(6) 6" 0
(8) 8" 0
(10) 10" 0
(12) 12" 0
(14) 14" 0
(16) 16" 0
(18) 18" 0
All swing joint components are double O-ring sealed.
* Quick Coupler Outlets available. Contact Dura's Sales Department for part numbers and pricing.
