O-Ring Ell Ultra Unibody
You can find Ordering Instructions at the bottom of this page.
Part Number Generator
First select "Size", then choose other options with the selection menus or by clicking icons below.
Inlets
IPS Standard
Iron Pipe Size Standard
(A1-a) 2" Soc x 1" FS
(A2-a) 2" Soc x 1 1/4" FS
(A3-a) 2" Soc x 1 1/2" FS
(A1-b) 2 1/2" Soc x 1" FS
(A2-b) 2 1/2" Soc x 1 1/4" FS
(A3-b) 2 1/2" Soc x 1 1/2" FS
JIS Standard
Japanese Industrial Standard
(J1-a) 50mm Soc x 1" FS
(J2-a) 50mm Soc x 1 1/4" FS
(J3-a) 50mm Soc x 1 1/2" FS
(J1-b) 65mm Soc x 1" FS
(J2-b) 65mm Soc x 1 1/4" FS
(J2-b) 65mm Soc x 1 1/4" FS
(J3-b) 65mm Soc x 1 1/2" FS
Outlets
IPS Standard
Iron Pipe Size Standard
(1) FS x Socket 1" or 1 1/4" or 1 1/2"
(2) FS x Fipt 1" or 1 1/4" or 1 1/2"
(3) FS x Mipt 1" or 1 1/4" or 1 1/2"
(4) 1" FS x 1 1/4" Mipt
(5) 1" FS x 1 1/2" Mipt
(6) 1 1/4" FS x 1 1/2" Mipt
(7) 1 1/4" FS x 1" Mipt
(8) 1 1/2" FS x 1" Mipt
(9) 1 1/2" FS x 1 1/4" Mipt
Acme Outlets
(13) 1" FS x 1" Acme
(14) 1" FS x 1 1/4" Acme
(15) 1" FS x 1 1/2" Acme
(16) 1 1/4" FS x 1" Acme
(17) 1 1/4" FS x 1 1/4" Acme
(18) 1 1/4" FS x 1 1/2" Acme
(20) 1 1/2" FS x 1 1/4" Acme
(21) 1 1/2" FS x 1 1/2" Acme
BSPT
British Standard Pipe (Tapered Thread)
(22) FS x BSPT 1" or 1 1/4" or 1 1/2"
(23) 1" FS x 1 1/4" BSPT
(24) 1" FS x 1 1/2" BSPT
(25) 1 1/4" FS x 1 1/2" BSPT
(26) 1 1/4" FS x 1" BSPT
(27) 1 1/2" FS x 1 1/4" BSPT
Lay Length
Lay Length
(6) 6" 152mm
(8) 8" 203mm
(10) 10" 254mm
(12) 12" 305mm
(14) 14" 356mm
(16) 16" 407mm
(18) 18" 458mm

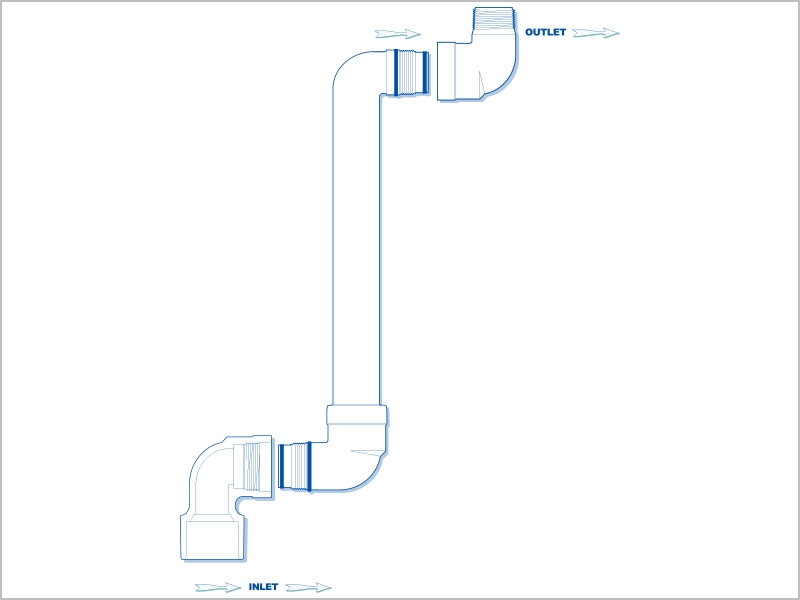

All swing joint components are double O-ring sealed.
* Quick Coupler Outlets available. Contact Dura's Sales Department for part numbers and pricing.
• D3139 rated 315 psi Double O-ring sealed inlet connection.
• Eliminates overtightening.
• Eliminates need for Teflon tape or paste.
