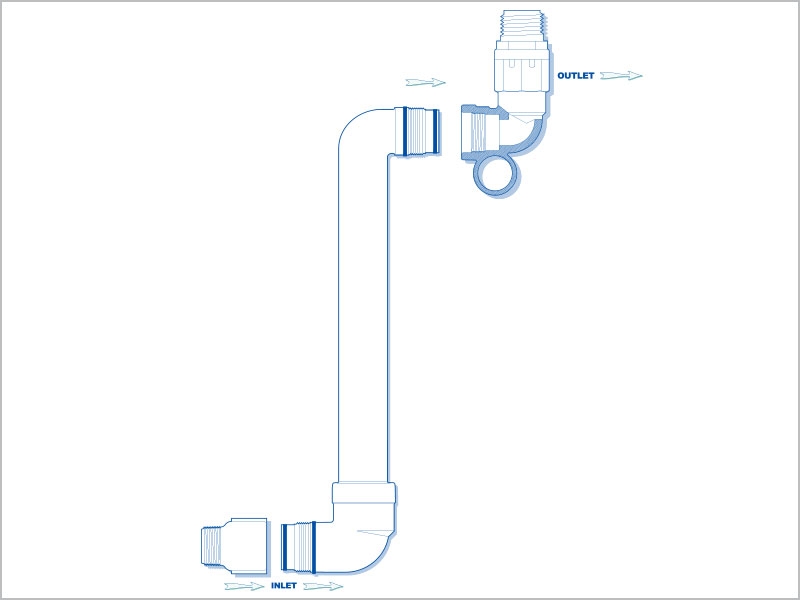

Quick Coupler Standard Unibody
Dura Quick Lock is automatically included with all Q.C. Swing Joint orders. You can find Ordering Instructions at the bottom of this page.
Part Number Generator
First select "Size", then choose other options with the selection menus or by clicking icons below.
Inlets
IPS Standard
Iron Pipe Size Standard
(A1) Mipt x FS 1" or 1 1/4" or 1 1/2"
(A2) Spg x FS 1" or 1 1/4" or 1 1/2"
(A3) 2" Spg x 1 1/2" FS
(A4) Soc x FS 1" or 1 1/4" or 1 1/2"
(A5) 2" Soc x 1 1/2" FS
(A8) 4" Spg x FS 1" or 1 1/4" or 1 1/2"
BSPT
British Standard Pipe (Tapered Thread)
(B1) BSPT x FS 1" or 1 1/4" or 1 1/2"
DIN Standard
Deutsche Industrie Norm
(D1) 25DN Spg x FS (32mm Actual Size)
(D3) 40DN Spgx FS (50mm Actual Size)
(D4) 25DN Soc x FS (32mm Actual Size)
(D6) 40DN Soc x FS (50mm Actual Size)
JIS Standard*
Japanese Industrial Stardard
(J1) 25mm Spg x FS
(J3) 40mm Spg x FS
(J4) 25mm Soc x FS
(J6) 40mm Soc x FS
Outlets
IPS Standard
Iron Pipe Size Standard
(1) 1" FS x 1" Brass Mipt
(2) 1 1/2" FS x 1 1/2" Brass Mipt
Lay Length
Lay Length
Order Code / Inch / Metric
(6) 6" 152mm
(8) 8" 203mm
(10) 10" 254mm
(12) 12" 305mm
(14) 14" 356mm
(16) 16" 407mm
(18) 18" 458mm
*JIS Standard reflects Nominal Bore size.
- One (1) piece Brass Mipt nipple molded to ell eliminates the need for 2 pieces.
- Viton O-ring seal between Brass Mipt and PVC assures against leaks.
-
Installer's choice of support features:
- Vertical Support - Insert 3/8" or 1/2" rebar stabilizing rods to secure the quick coupler valve.
- Horizontal Support - Insert 1" pipe through molded-in parallel support to stabilize the swing joint.
- Back Support - A stake mount may be attached to the back of the ell as an optional support
- Mounting options may be used singularly or in conjunction with one another.
All Swing joint components are double O-ring sealed.
