Standard Kits

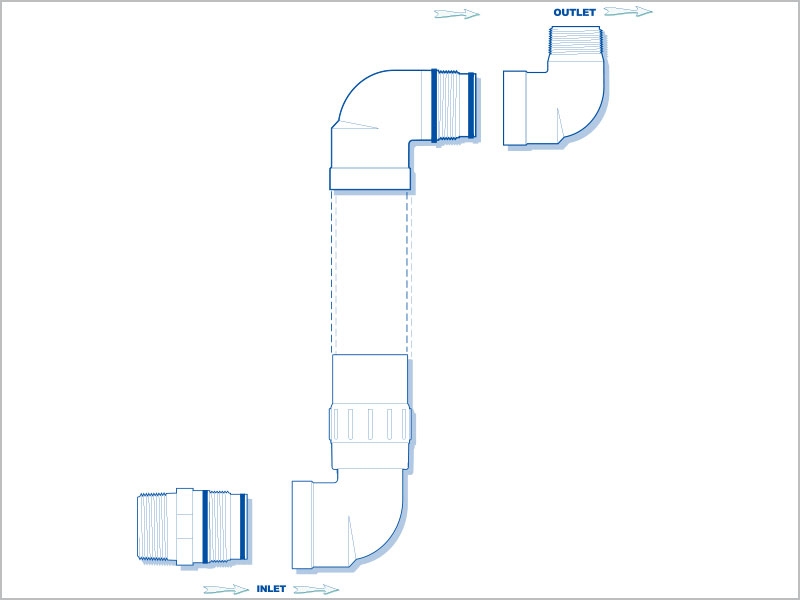

INSTALLER IS TO: (1) Furnish pipe. (2) Cut pipe to desired length. (3) Solvent weld as per ASTM D2855-90. You can find Ordering Instructions at the bottom of this page.
Part Number Generator
First select "Size", then choose other options with the selection menus or by clicking icons below.
Inlets
IPS Standard
Iron Pipe Size Standard
(A1) Soc x MS 1" or 1 1/4" or 1 1/2"
(A2) Spg x MS 1" or 1 1/4" or 1 1/2"
(A3) 1 1/4" Spg x 1" MS
(A4) 1 1/2" Spg x 1" MS
(A5) Mipt x MS 1" or 1 1/4" or 1 1/2"
(A6) 1 1/4" Mipt x 1" MS
(A7) 1 1/2" Mipt x 1" MS
(A8) 1 1/2" Mipt x 1 1/4" MS
BSPT
British Standard Pipe (Tapered Thread)
(B1) BSPT x MS 1" or 1 1/4" or 1 1/2"
(B2) 1 1/4" BSPT x 1" MS
(B3) 1 1/2" BSPT x 1" MS
(B4) 1 1/2" BSPT x 1 1/4" MS
DIN Standard
Deutsche Industrie Norm
(D1) 25 DN Soc x MS (32mm Actual Size)
(D2) 32DN Soc x MS (40mm Actual Size)
(D3) 40DN Soc x MS (50mm Actual Size)
(D4) 25DN Spg x MS (32mm Actual Size)
(D5) 32DN Spg x MS (40mm Actual Size)
(D6) 40DN Spg x MS (50mm Actual Size)
Outlets
IPS Standard
Iron Pipe Size Standard
(1) FS x Socket 1" or 1 1/4" or 1 1/2
(2) FS x Fipt 1" or 1 1/4" or 1 1/2
(3) FS x Mipt 1" or 1 1/4" or 1 1/2
(4) 1" FS x 1 1/4" Mipt
(5) 1" FS x 1 1/2" Mipt
(6) 1 1/4" FS x 1 1/2" Mipt
(7) 1 1/4" FS x 1" Mipt
(8) 1 1/2" FS x 1" Mipt
(9) 1 1/2" FS x 1 1/4" Mipt
(11) FS x Brass Mipt 1" or 1 1/2"
Acme Outlets
(13) 1" FS x 1" Acme
(14) 1" FS x 1 1/4" Acme
(15) 1" FS x 1 1/2" Acme
(16) 1 1/4" FS x 1" Acme
(17) 1 1/4" FS x 1 1/4" Acme
(18) 1 1/4" FS x 1 1/2" Acme
(20) 1 1/2" FS x 1 1/4" Acme
(21) 1 1/2" FS x 1 1/2" Acme
BSPT
British Standard Pipe (Tapered Thread)
(22) FS x BSPT 1" or 1 1/4" or 1 1/2
(23) 1" FS x 1 1/4" BSPT
(24) 1" FS x 1 1/2" BSPT
(25) 1 1/4" FS x 1 1/2" BSPT
(26) 1 1/4" FS x 1" BSPT
(27) 1 1/2" FS x 1 1/4" BSPT
All Swing joint components are double O-ring sealed.
INSTALLER IS TO:
1. Furnish pipe.
2. Cut pipe to desired length.
3. Solvent weld as per ASTM D2855-90.
